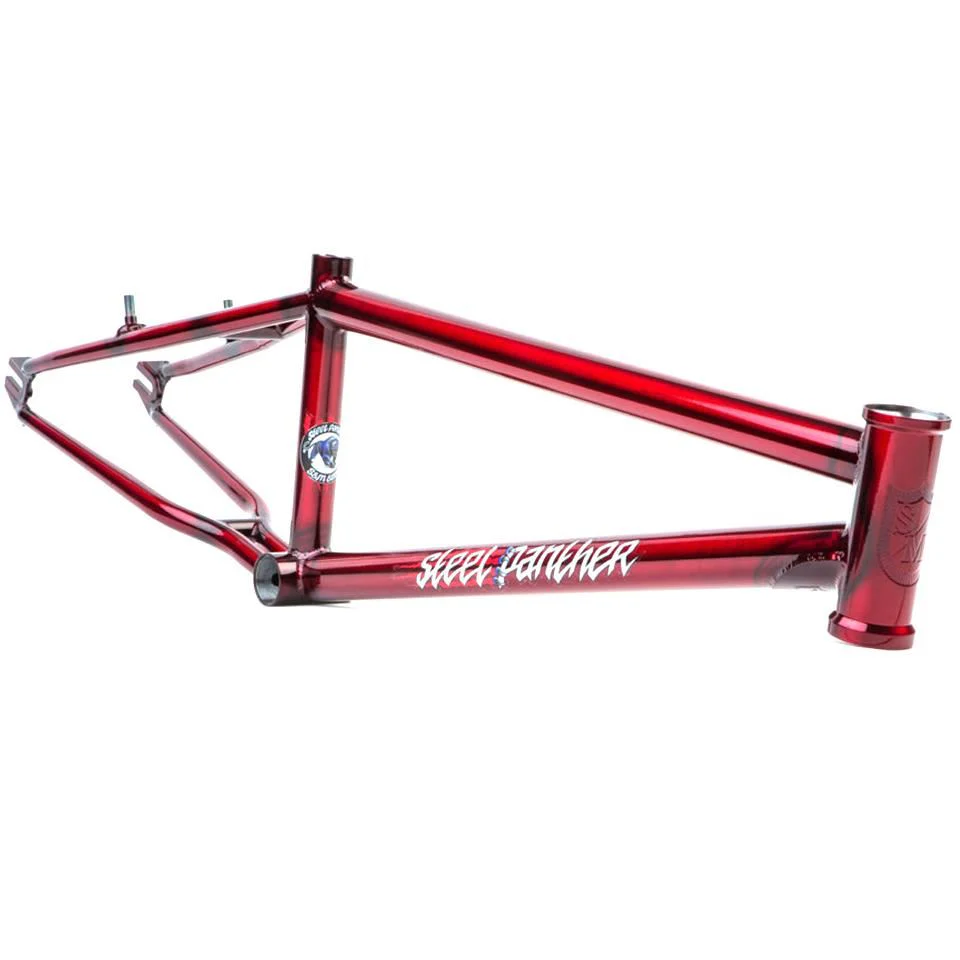

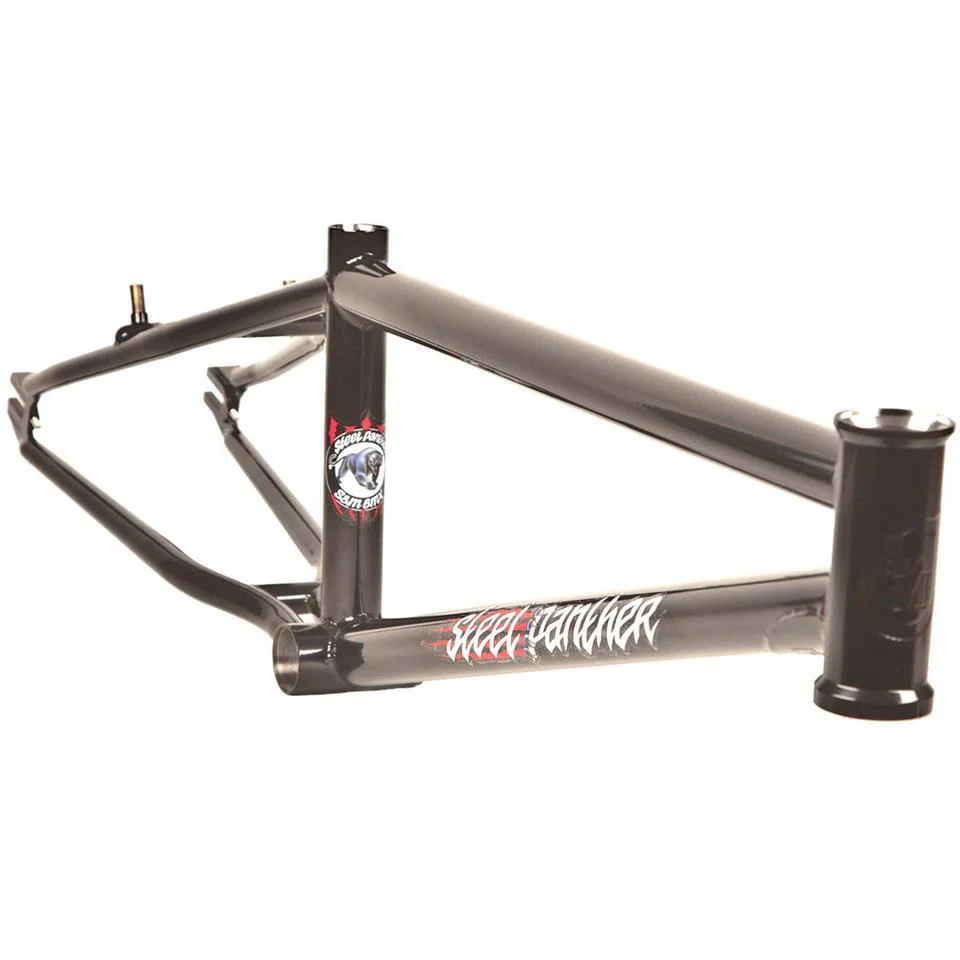

S&M Steel Panther Race Frame

Prowling BMX tracks, easily preying on weaker Asian varieties, the American Steel Panther is King of the CrMo race frame jungle. And unlike it’s predecessors the 38 Special and Speedwagon, it’s not named after a cheesy rock band from the 80’s.

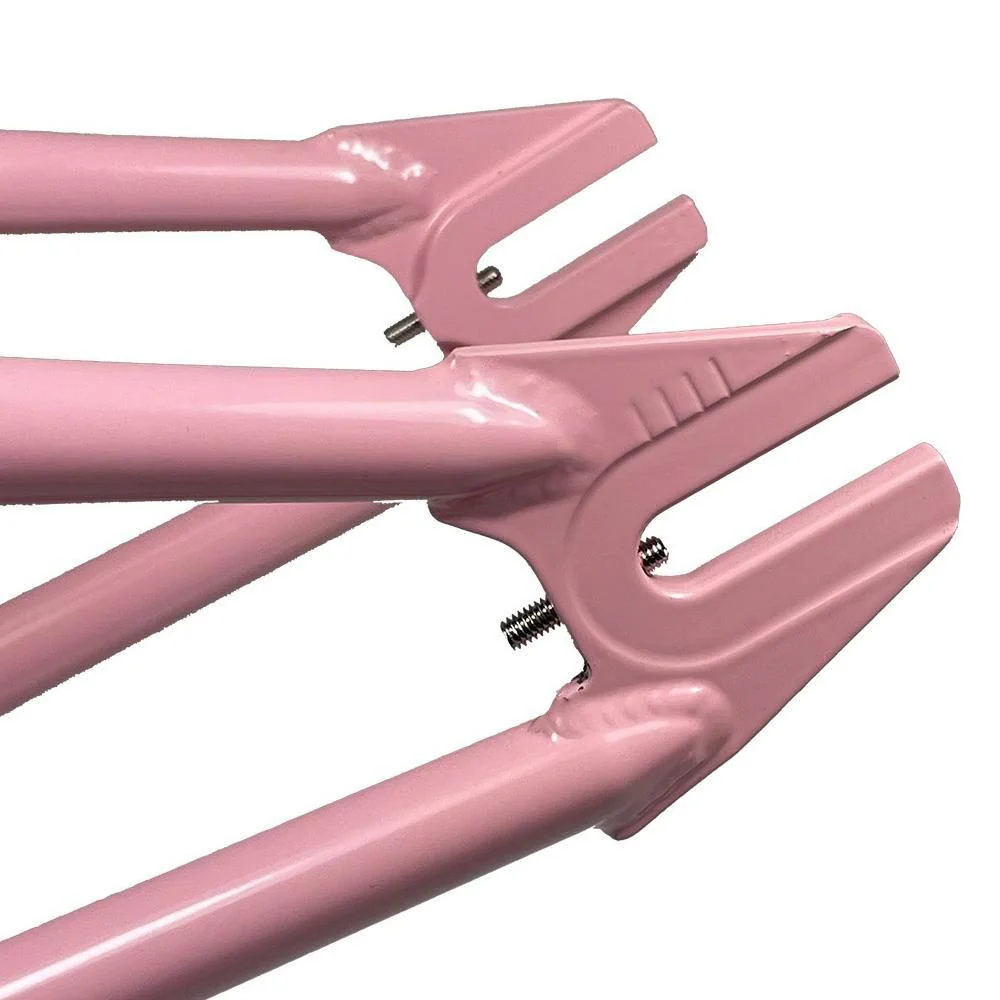

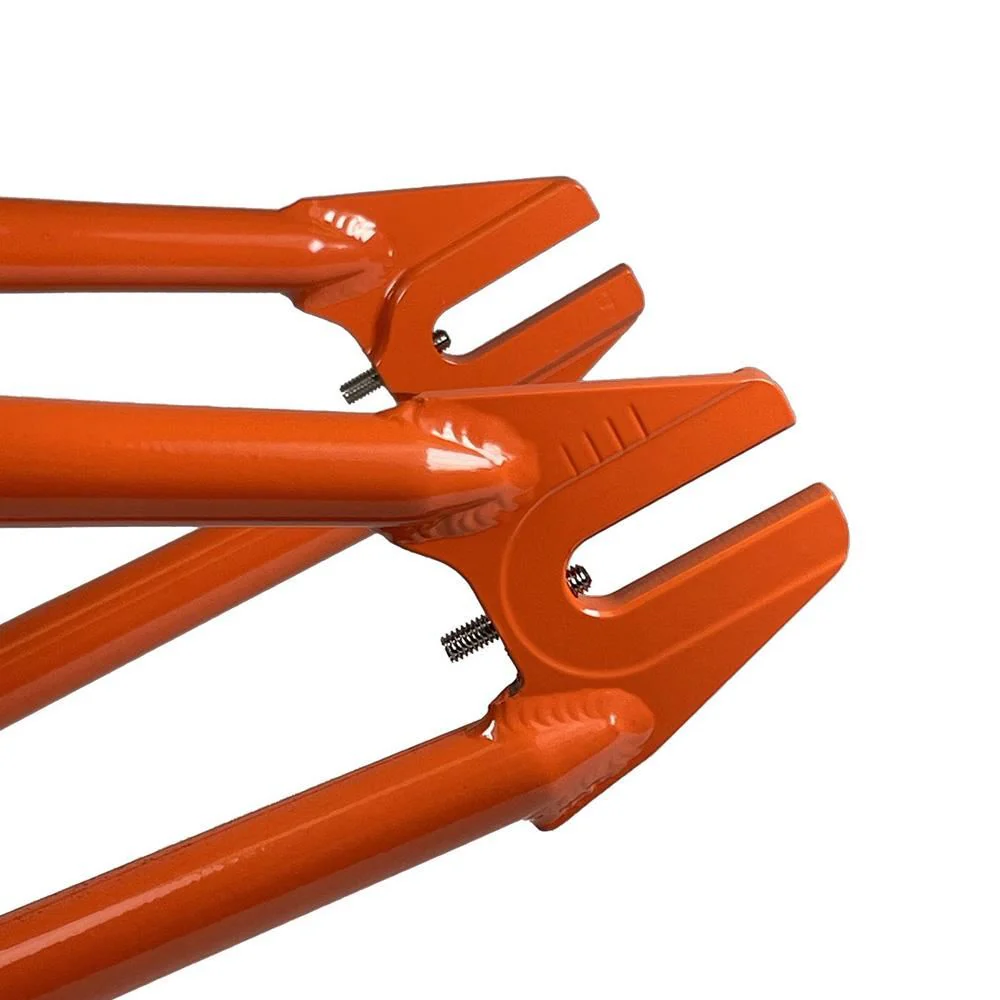

Some notable improvements from the Speedwagon include: Additional bend in seat-stays for greater chain clearance, integrated chain tensioners in drops and slightly lower stand-over. Rear-end length depends on Top Tube length.

###section###

Product Specs

1. MATERIAL: Chromoly
2. HEAD TUBE ANGLE: 74.5°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 20.5" - 21.5" - 14.4" // 21.75" - 23" - 14.9"
5. BB HEIGHT: 11.5"
6. WHEEL SIZE: 20"
7. STANDOVER HEIGHT: 7.75"
8. DROPOUT SIZE: 3/8"
9. HEADSET TYPE: Integrated
10. BB TYPE: 68mm Euro
11. BRAKE MOUNTS: Welded V-Brake
12. GYRO TABS: N/A
13. WEIGHT: 4.17lbs

###section###

Product Highlights

• BMX Racing Specific Geometry
• Race Specific Frame
• High-quality Chromoly construction
• Gusseted tubing for added strength
• Made in the USA
